Send a TCP or UDP message to your device

The Hologram Cloud provides an API and a Dashboard interface to send TCP or UDP messages to any port on a cellular device. By running a server on your device that listens on a given port, you can receive and process these messages.

Start a test server

One simple way to start a test TCP server on a Linux device (e.g. Raspberry Pi) is with the netcat command. To listen on port 9876 and print any incoming message, run the command:nc -l -p 9876

By default netcat will quit after the sender closes the connection. Some versions support a -k option to keep listening indefinitely.

A more realistic application might use a socket library in a language like Python, where you could then parse and act on the incoming messages. But for illustrating the communication channel itself, netcat is nice and simple.

Send a message

From the Dashboard

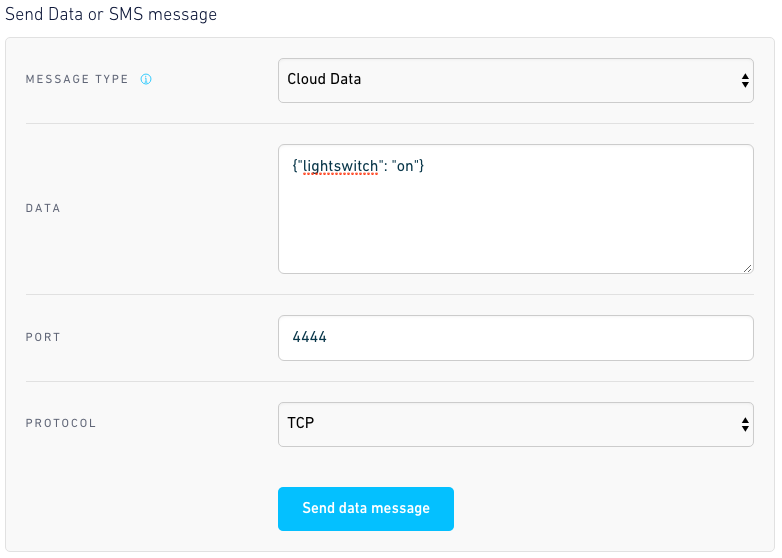

You may send messages to a device from the device’s page on the Hologram Dashboard. Open the Messaging section and complete the Device Messaging form, making sure to select Cloud Data as the message type:

Nova Block Diagram

Enter the same port number as you configured your server to listen on, and select TCP as the protocol. When you submit the form, the Hologram Cloud will forward the message to your device.

Via REST API

Messages can be sent via HTTP API using the /devices/message endpoint.

Via Inbound Webhook

The HTTP API above requires an API key to authenticate. This can make it difficult to integrate with an external service that simply sends webhook requests to a configurable URL. To accommodate this use case, you may generate a special URL endpoint which does not require additional authentication.

To generate a URL for inbound webhooks, open the Webhooks tab on a device’s dashboard page. Click Generate webhook and specify which port and protocol (TCP or UDP) to forward data to:



The request body must contain a data field with a string value. This value gets emitted to the device on the configured port.

Replies

If the device sends data back through the socket connection after receiving a message, it gets sent as a message to the Data Router.

Advanced messaging with Spacebridge

Spacebridge is a lower-level alternative to cloud messaging. It acts as a secure proxy from a device’s port to a port on your local machine. This allows you to implement other two-way TCP and UDP based protocols to communicate with your device.

See our Spacebridge guide for details.
